Consolidated Sterilizer Systems
American-made steam sterilizers.
Made in the USA
Made in the USAHealthcare steam sterilization for hospitals and surgery centers, with three chamber sizes and serviceable components.
Request a Consolidated quote
3 modelsHealthcare range
7-inchX1 touchscreen
USAManufactured in America
The range
Models and sizes.
Choose a chamber size around your instrument loads and available space.
Healthcare steam sterilizer models
| Model | Chamber W × H × D (in.) | Tray capacity | Maximum load |
|---|---|---|---|
| 3AV-HC | 20 × 20 × 38 | 3 trays | 75 lb |
| 26AV-HC | 26 × 26 × 39 | 9 trays | 225 lb |
| 26BV-HC | 26 × 26 × 49 | 12 trays | 300 lb |
Tray capacities are based on a maximum of 25 lb per tray. Final loading and cycle selection depend on the instruments and their instructions for use.
In daily use
Product features.

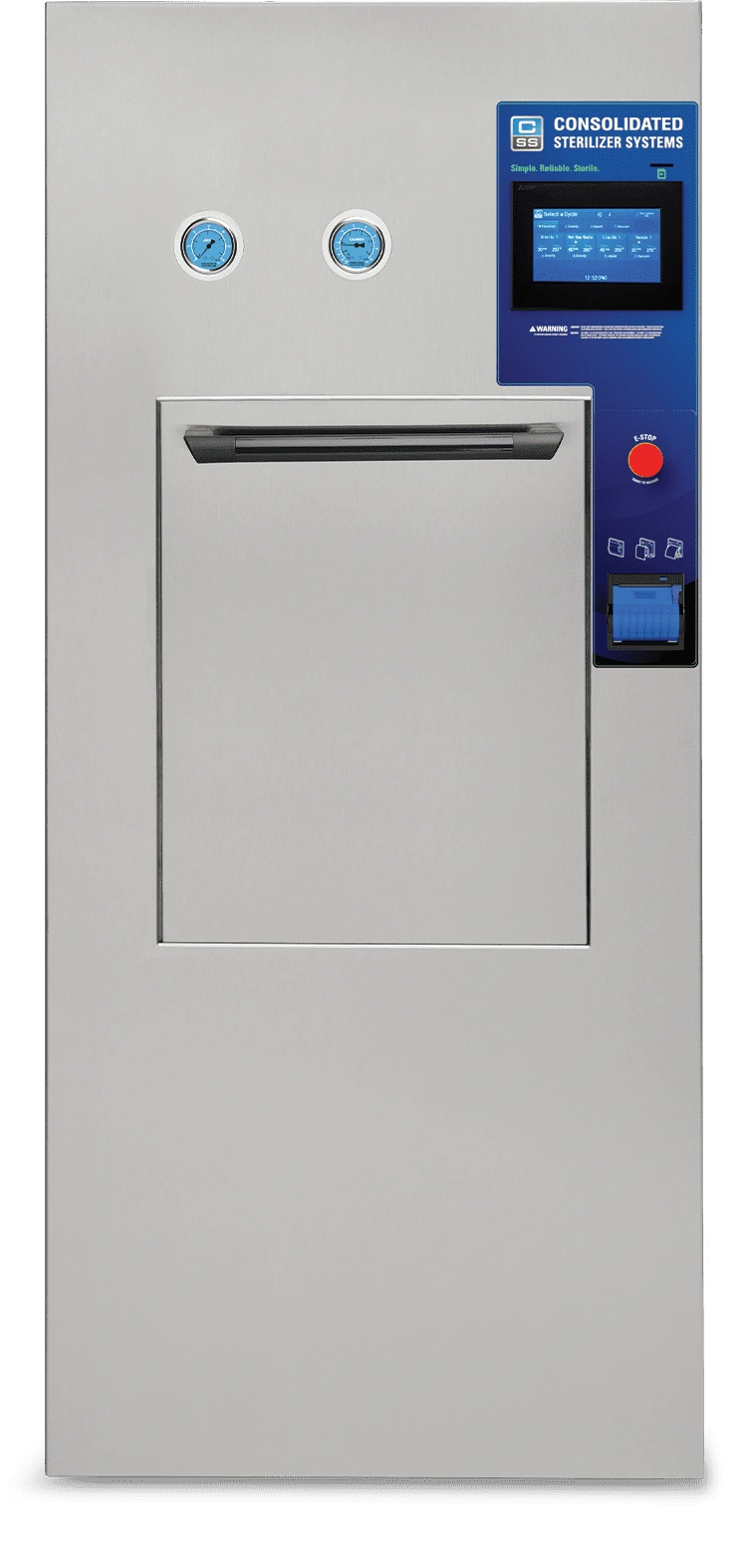

EZ-Glide vertical door
A powered sliding door with foot-pedal operation and manual operation during a power failure. Counterweights and pneumatic actuators drive the mechanism.
X1 controls
A 7-inch color touchscreen provides cycle favorites, password-controlled access, and protection against unauthorized parameter changes.
Cycle records
Electronic storage through SD/USB and a thermal printer support cycle documentation. The display also shows service and maintenance reminders.
Service access
Hinged front panels and non-proprietary components support maintenance. The chamber is fully jacketed and made from 316L stainless steel.
For your facility
Configuration
and utilities.
WaterEco
Monitors water use and reduces cold water needed for effluent cooling.
EcoCalendar and idle shut-off
Schedules steam availability and shuts it off during programmed idle periods.
EcoJacket
Lowers jacket temperature between cycles to reduce utility use and room heat load.
Steam and loading options
House steam or a dedicated generator, loading carts, and transfer carriages can be planned with your installation.
Equipment and service, together
Plan your project
with Sanos.
Sanos can coordinate steam supply, electrical service, water, drainage, access, installation, and ongoing maintenance. We’ll confirm the equipment configuration and site requirements with your quote.
